What does it mean when a water heater is leaking from the bottom?
A water heater leaking from the bottom usually means one of four things: the drain valve is weeping, water is running down from a leak higher up, condensation is collecting under the tank, or the inner steel tank has corroded through. The first three are often fixable. The last one means the heater needs replacing. Check the drain valve first when you see a water heater leaking from bottom.
The bottom of a tank-style heater is where problems collect. Sediment from hard water settles there, the burner on a gas heater sits directly beneath it, and gravity carries any drip from above down to the floor. That is why a puddle under the tank is a symptom, not a diagnosis. Before anyone recommends a new heater, the job is to prove where the water is actually coming from. A water heater leaking from bottom should be shut off until it is inspected.
In older La Mirada homes, many heaters sit in attached garages or hallway closets. A garage leak tends to be spotted early on bare concrete, while a closet leak can soak into flooring and baseboards for days before anyone notices. Either way, the steps are the same: stop the water, find the source, then decide between repair and replacement. If the leak is somewhere else on the heater, our overview of help for a leaking water heater covers every leak point. Rust at the base often comes with a water heater leaking from bottom.
How a pro tells a drain valve leak from a failed tank
A provider's first job is to separate a simple parts problem from a tank failure, because the cost difference is large. A careful diagnosis usually follows a set order. Condensation can make a water heater leaking from bottom look worse than it is.
- Dry everything. The tank, the floor and the pan are wiped dry so fresh water shows up clearly.

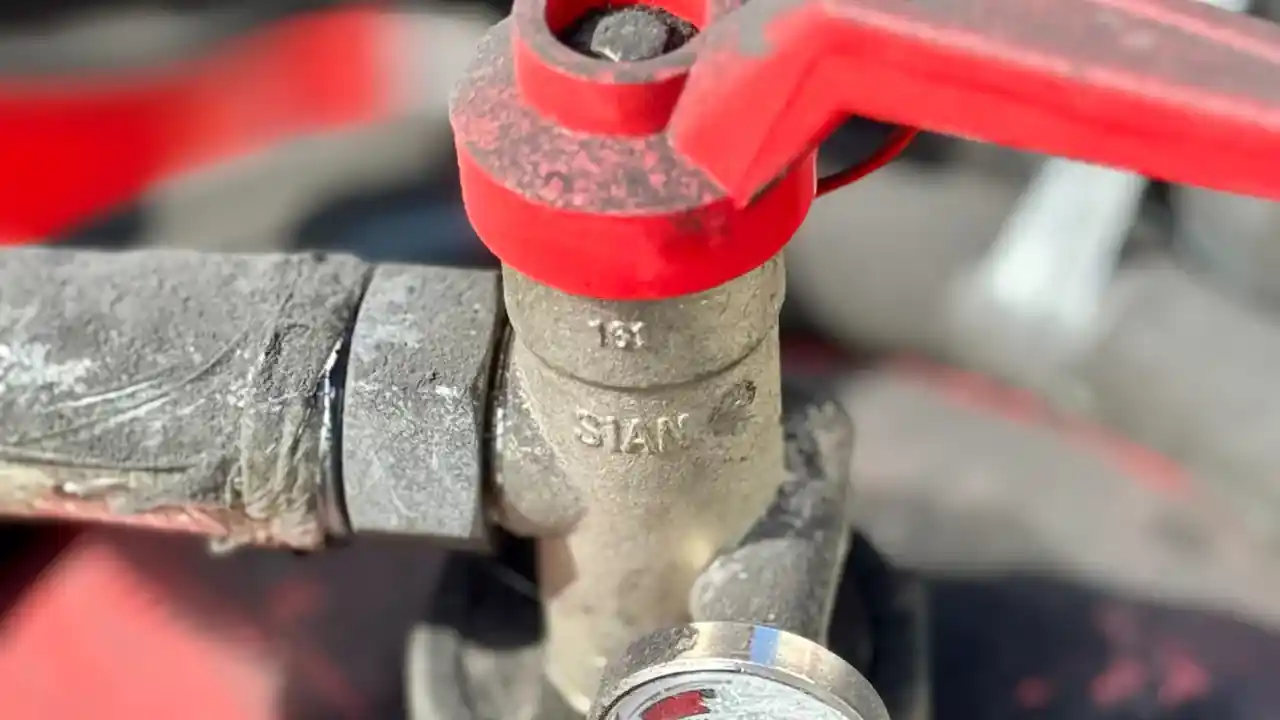

- Check from the top down. The cold inlet, hot outlet, flexible connectors and the temperature and pressure (T&P) relief valve are inspected first, because a drip from any of them can run down the jacket and pool at the base.
- Inspect the spigot. The valve near the bottom is checked for drips at the outlet and around the threads where it enters the tank.
- Rule out condensation. On cool mornings, a freshly filled gas heater can sweat, and droplets can fall onto the burner and floor. Condensation stops once the tank is up to temperature; a real leak does not.
- Look under the jacket. On a gas unit, the burner access panel lets the technician see rust, water marks or scale on the tank bottom. Water coming from inside the insulation with dry fittings above points to the tank itself.
This is the same method used in general water heater leak detection, focused on the base of the tank. If house water pressure is high, a gauge test is added, because excess pressure speeds up tank failure and makes relief valves drip. A water heater leaking from bottom with dry fittings above usually means tank failure.
Water heater leaking from bottom of tank? 8 warning signs it is failing
A bottom leak rarely appears out of nowhere. These signs often show up first, and the more of them you see, the more likely the tank itself is the problem. Never ignore a water heater leaking from bottom in an indoor closet.
- Water under the tank with dry pipes above. The clearest sign the leak is coming from inside.
- Rust-colored hot water. Rust that appears only on the hot side suggests corrosion inside the tank.
- Rust streaks or flaking on the jacket near the base or around the drain valve.
- Popping or rumbling while the heater runs, from thick sediment on the tank floor.
- A heater 10 or more years old. Check the date code on the label.
- Less hot water than before, as sediment takes up space and insulates the burner.
- Water in the burner area or a pilot that keeps going out on a gas unit.
- A puddle that comes back after you dry the floor, even with the relief valve dry.
What causes a water heater to leak from the bottom of the tank?
Internal corrosion
The inner tank is steel with a thin glass lining. A sacrificial anode rod protects it by corroding first. Once the anode is used up, rust attacks any weak spot in the lining, usually at the bottom where sediment sits. When the steel rusts through, water seeps into the insulation and out at the base. This is the leak that cannot be repaired. Timely anode rod replacement is the best way to delay it. A drain pan limits damage from a water heater leaking from bottom.
Sediment buildup
Southern California water carries a lot of dissolved minerals. As water heats, those minerals settle as scale. On a gas heater, the layer traps heat against the tank floor, overheating the steel and the lining. Regular flushing and descaling removes it before it does damage. A water heater leaking from bottom near the burner needs a professional check.

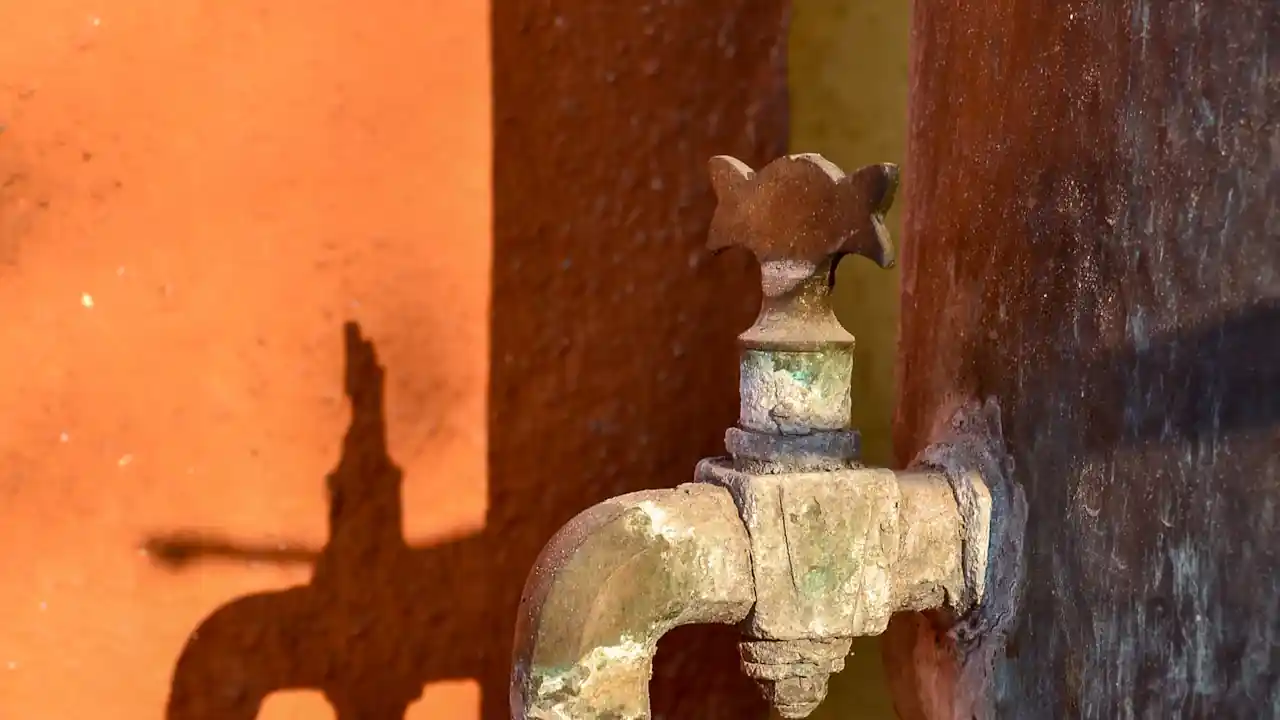

A worn or loose drain valve
Many heaters ship with a plastic drain valve that becomes brittle with heat. It can drip from the outlet or leak around the threads. This is a common, inexpensive repair handled by drain valve replacement. Older tanks are the most likely to end up as a water heater leaking from bottom.
Water running down from above
A leaking connector, union or relief valve can send water down the outside of the jacket, where it collects at the base and looks like a tank leak. Sediment build-up speeds up the corrosion behind a water heater leaking from bottom.
Water heater leaking from bottom: how to turn it off and check it safely
You do not need tools to narrow the problem down, and these steps help the provider on the phone. A water heater leaking from bottom can fail suddenly, so act early.
- Turn the cold-water valve above the heater clockwise to stop new water entering.
- Set a gas control knob to OFF, or switch off the breaker for an electric heater.
- Dry the floor and lay a paper towel under the spigot and around the base.
- Look at the pipes on top and the relief valve pipe on the side for drips.
- Note the age on the label and take a photo of it for the provider.
WarningDo not open the spigot to empty a hot tank yourself. The water can scald, and an old valve may not close again. Leave draining to the provider.
What happens when the provider arrives
Once the source is confirmed, the visit goes one of two ways. Photograph a water heater leaking from bottom before you clean up.
If a part is leaking
The heater is drained to below the leak, the faulty part is replaced (often the spigot valve or a fitting above), the tank is refilled, air is purged from the lines, and the heater is relit or powered back up. The technician then watches the repair through a full heating cycle to confirm it stays dry. A water heater leaking from bottom is one of the most common calls we take.
If the tank has failed
The provider quotes a same-day water heater replacement. That covers draining and disconnecting the old unit, setting the new heater, reconnecting water and gas or power, and bringing the install up to current code. In California that includes seismic strapping, and often a thermal expansion tank and correct venting. Ask whether haul-away of the old heater and a drain pan are included. Replacement is the only safe fix for a water heater leaking from bottom through the shell.
Pro tipAsk the technician to show you the source of the leak, or send a photo. A trustworthy provider will happily explain why a tank is being condemned.
What affects the cost of fixing a bottom leak?
Pricing comes from the provider after diagnosis. These factors drive the difference between a small repair and a replacement. Keep children away from a water heater leaking from bottom, as the water may be hot.
| Factor | Why it matters |
|---|---|
| Leak source | A valve or fitting is a parts job; a corroded tank means a new heater. |
| Tank size and fuel | Larger tanks and gas units with venting cost more to replace than small electric units. |
| Code upgrades | Straps, an expansion tank or venting changes may be required on a replacement. |
| Access | Closet, attic and tight installs take longer than an open garage. |
| Water damage | Damaged flooring or drywall is a separate restoration cost. |
For a fuller breakdown, see the water heater leak repair cost guide. Ask for a repair-or-replace answer when a water heater leaking from bottom is inspected.
When a bottom leak is an emergency
Call right away if water is spreading beyond the heater, reaching walls, carpet or cabinets, if the leak gets faster after you shut off the supply, if water is near the burner or electrical parts, or if the heater is in an interior closet or upstairs. A steady stream from the base can mean the tank is about to split. In those cases, treat it as an emergency water heater repair and call (562) 539-0506.
Smell gas?Leave the home now and call SoCalGas or 911 from outside. Do not switch lights or appliances on or off.
Water heater leaking from bottom: frequently asked questions
Why is my water heater leaking from the bottom?
The most common causes are a worn drain valve, water running down from a leak higher up, condensation, or a tank that has corroded through. Dry the heater and watch where water reappears to narrow it down; if fittings and valves are dry, the tank is the likely source.
Can a water heater leaking from the bottom be repaired?
If the leak is from the drain valve or from water dripping down from a fitting above, yes. If the inner steel tank has rusted through, it cannot be safely repaired and the heater needs replacing.
How do I turn off a water heater leaking from the bottom?
Turn the cold-water shut-off valve above the heater clockwise until it stops. Set a gas heater's control knob to OFF or the vacation setting, or switch off the breaker for an electric heater. Do not try to drain a hot tank yourself.
Is it safe to use hot water while the tank is leaking?
It is better not to. Every time the heater fills and heats, pressure pushes on the weak spot. Shut off the supply and use as little hot water as possible until the heater is inspected.
How long can a water heater leak from the bottom before it fails?
There is no safe way to predict it. Some tanks weep for weeks, others split within days. A bottom leak from corrosion only gets worse, so treat it as urgent.
Will homeowners insurance cover a water heater leaking from the bottom?
Policies vary. Many cover sudden water damage to the home but not the worn-out heater itself, and may question damage from a leak that was left unattended. Check your policy and take photos before cleanup.
